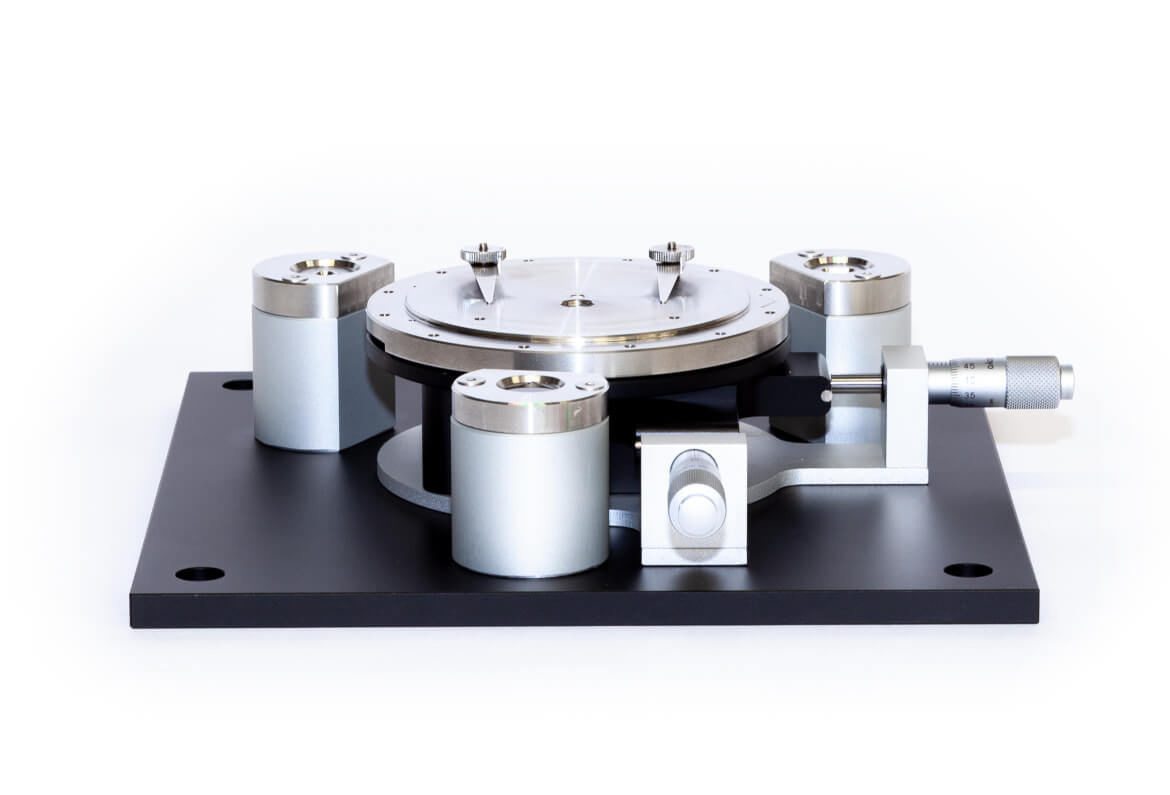

Micrometer translation stage
Micrometer stage for FlexAFM sample stages.
Description | Specification |
---|---|
Travel range | 13 mm |
XY position reproducibility | <10 µm |

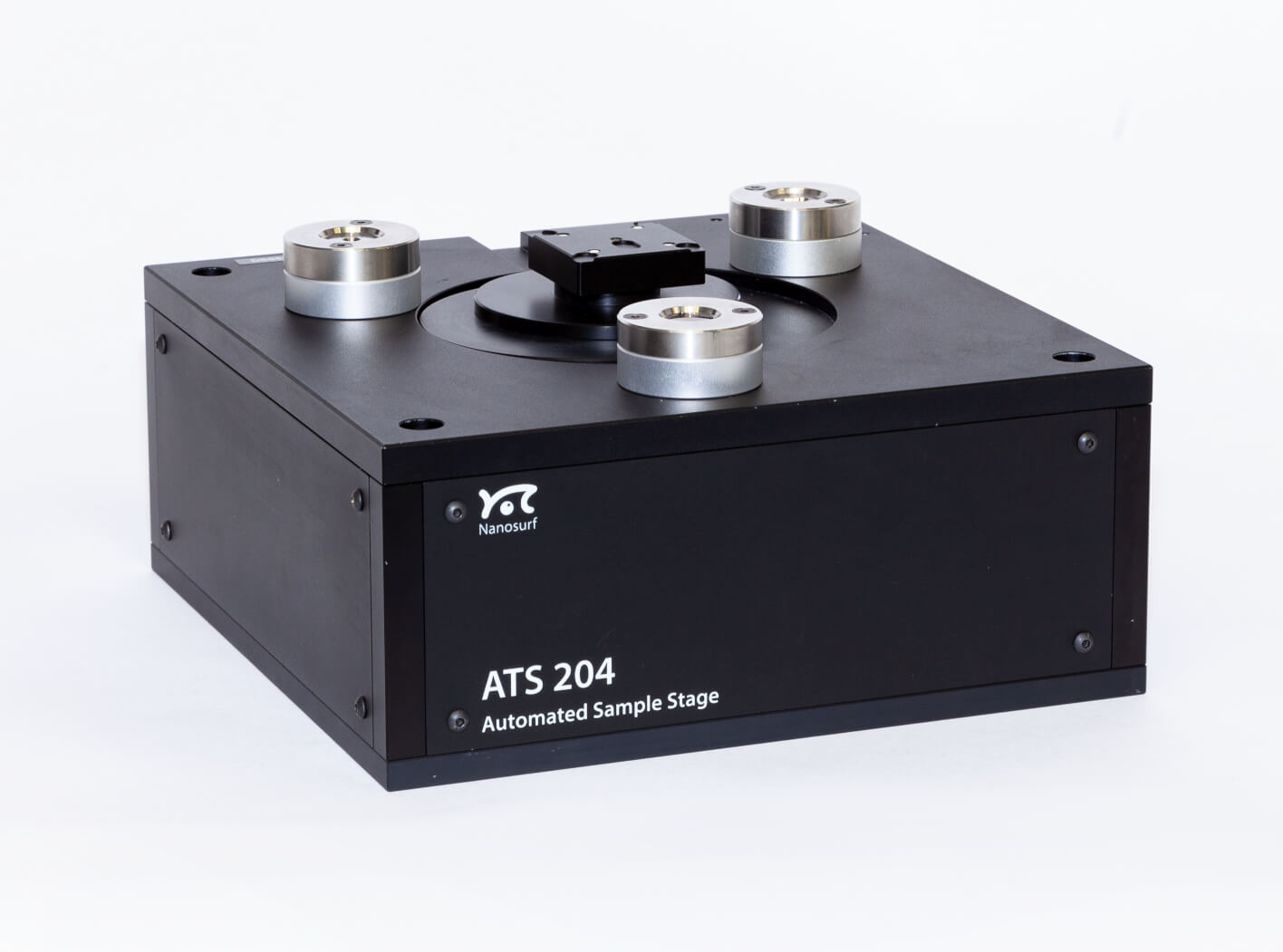

ATS204: motorized translation stage

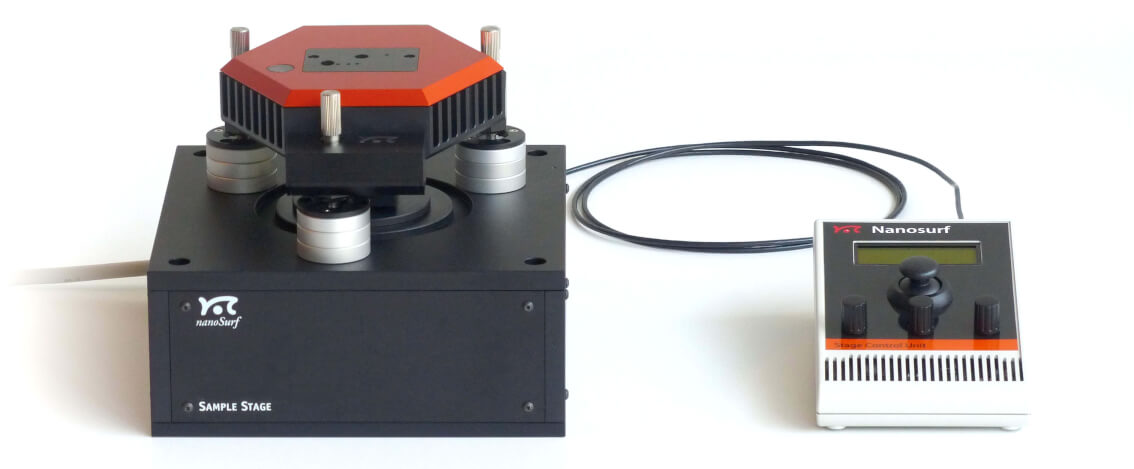

For use with FlexAFM scan head. Can be fixed with screws to Isostage and Isostage 300.
Description | Specification |
---|---|
XY travel range | 32 mm |
Z-travel | 5 mm |
Repositioning accuracy | 1 µm |

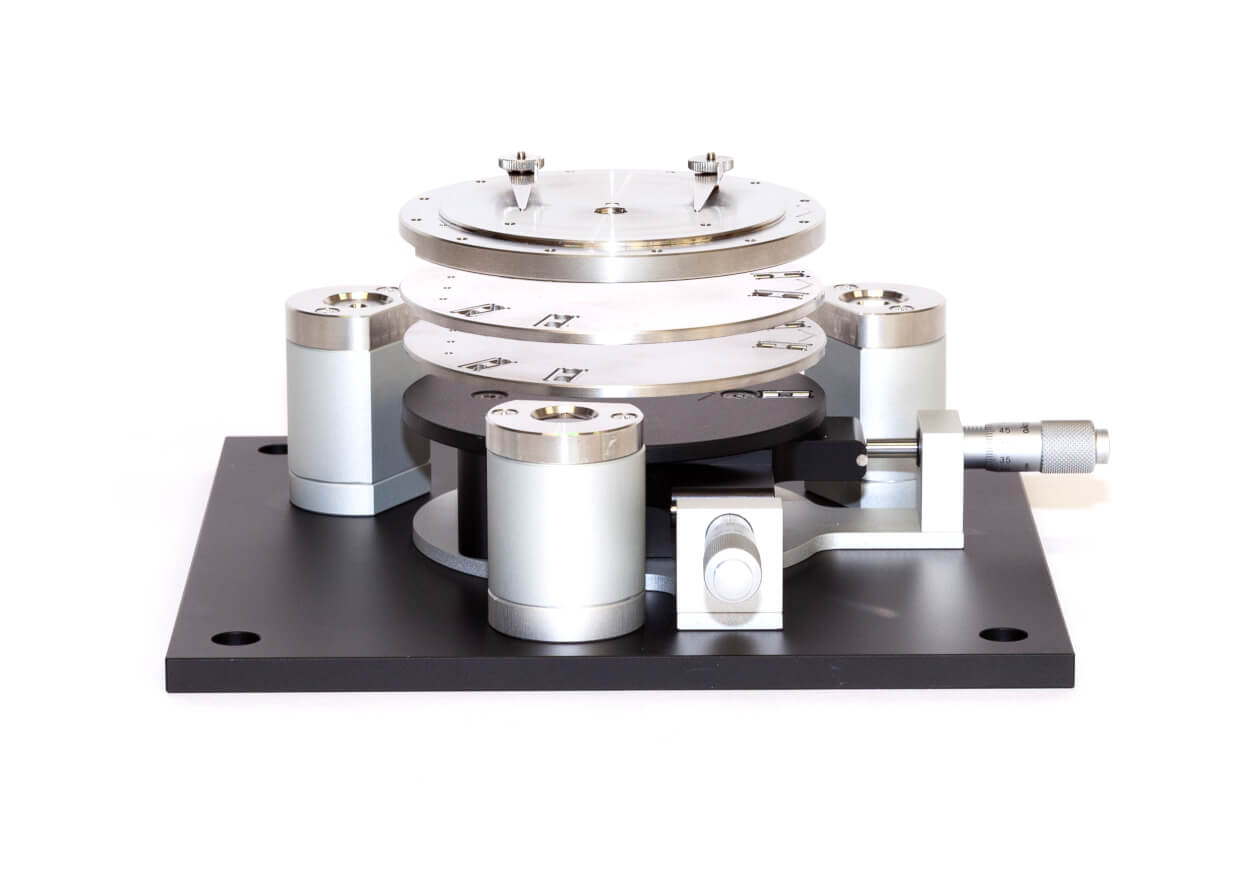

Height extension
Height extension kit to raise the scan head on the Flex sample stage 204 by 8 mm to allow accomodation of higher samples.
Intermediate and small height samples can still be examined using the 4 mm height adaptors for the 100 mm diameter sample holders.
